ITO ES-130 3 Channel Palm Size ElectroAcupuncture Unit

ITO ES-130 3 Channel Palm Size ElectroAcupuncture Unit

Regular price $450.00 CAD
Regular price Sale price $450.00 CAD
Sale Sold Out
Shipping calculated at checkout.

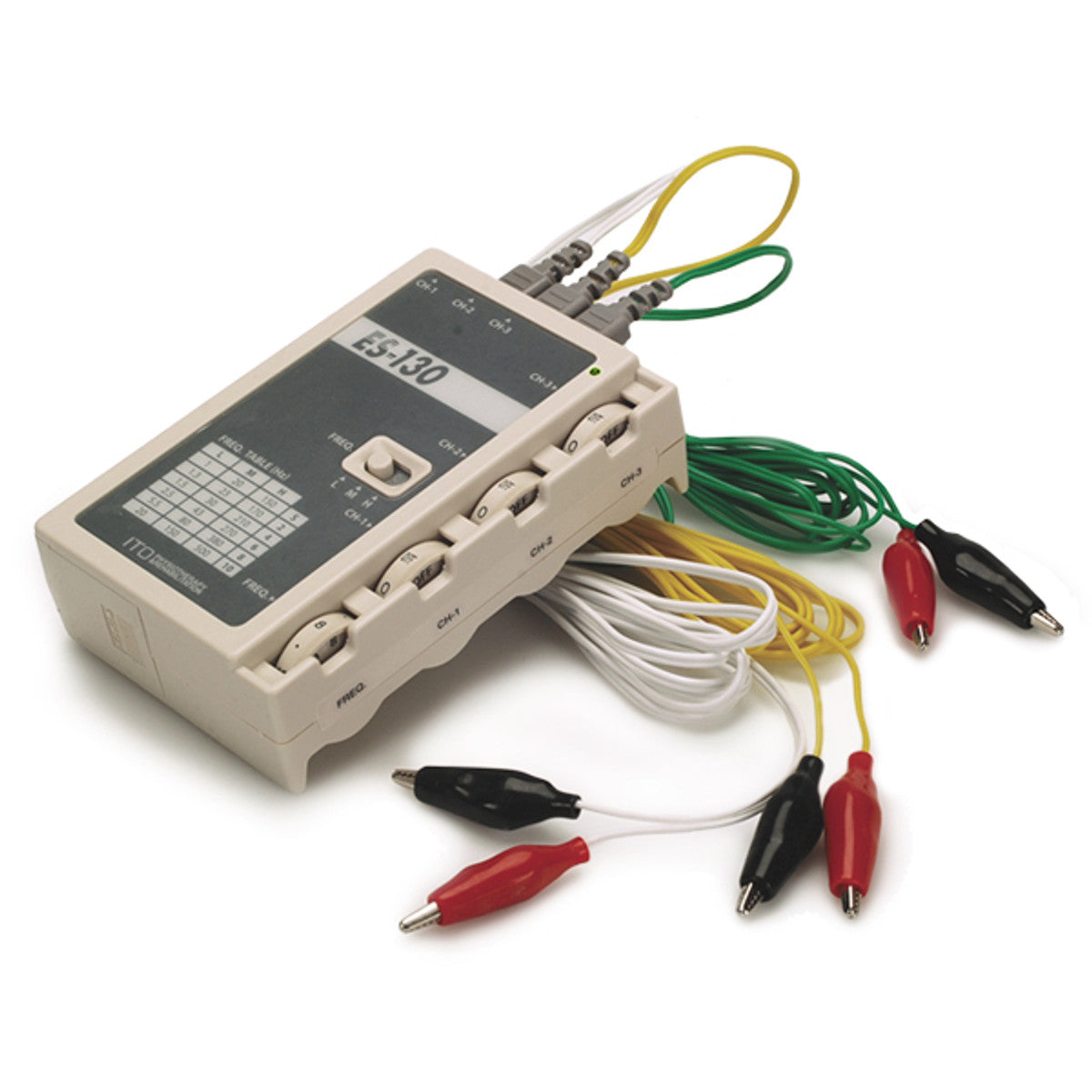

ITO ES-130 3 Channel Palm Size ElectroAcupuncture Unit

This Japanese (ITO Company Ltd), palm sized device is the most popular electro-stimulator. It has 3 independently controlled output channels with adjustable frequency indicated by flashing light.

  • Features:
    Semi-Independent 3 Electro-Stimulation Channels
    Dual Intensity Setting
  • Frequency Range Selector Switch
  • Frequency Table & Fine Frequency Adjustable Dial


Medical Devices Licence No.: 84997

  • Compact, sturdy, high quality Japanese electro-therapy
  • Light weight
  • Fits in the palm of your hand
  • High/Low switch on the back of the unit
    • Low to facilitate use with needles
    • High for MEA electro-therapy
  • 3 independently controlled output channels with adjustable frequency indicated by a flashing light
  • Unique biphasic pulse waveform designed to minimize electrolysis damage to the needle
  • Accessories include 3 sets of CE wire leads with rectangular CE jack, carrying case, belt clip, & instructions.

The pocket portable ES-130® is the smallest and smartest looking professional electro-therapy unit in the world, for use in or out of the office. This unit is not equipped with a point locator.


Semi-Independent 3 Electro-Stimulation Channels:

Semi-independent 3 electro stimulation channels allow to treat for various parts of body simultaneously. Semi-independent channels mean that you can apply different current intensity for each channel.


As the weight of the unit is approximately 120 g (without battery) and the unit size is very compact, you can easily bring them anywhere you like.

Dual Intensity Setting:

Low / High intensity can be easily set by Selector Switch located at the back side of main unit.

Frequency Range Selector Switch:

You can set ranges of frequency below by using selector switch.

  1. L (Low) = 1–20 Hz
  2. M (Medium) = 20–150 Hz
  3. H (High) = 150–500 Hz

Frequency Table & Fine Frequency Adjustable Dial:

You can easily set particular frequency with the table and the dial.


Power supply 1 x DC 9 V battery
Number of channels 3 semi-independent
Current amplitude (peak) [High] 14 mA ± 20% / [Low] 8 mA ± 20%
Output waveform Biphasic rectangular
Phase duration 100 μs
Frequency 1–500 Hz
Safety class according to IEC 60601-1 Internally powered equipment, Type BF
Dimensions 63 (W) x 27 (D) x 96 (H) mm
Weight Approx. 120 g (without battery)
