EMPI X Direct Tens - 2527116

EMPI X Direct Tens - 2527116

Regular price $559.00 CAD
Regular price $649.00 CAD Sale price $559.00 CAD
Sale Sold Out
Shipping calculated at checkout.

EMPI X Direct Tens - 2527116

Life Time Warranty Manufacturer Warranty DJO Global

Direct TENS™ is a transcutaneous electrical nerve stimulator. Transcutaneous electrical nerve stimulation (TENS) uses electrical pulses that are delivered through the skin to the cutaneous (outer) and afferent (deeper) nerves to alleviate pain. Contrary to medication and cream used on the skin, there are no known side effects resulting from TENS therapy.

Via electrodes attached to the skin, Direct TENS™ sends electrical pulses to the nerves. This will block the pain impulses. Four electrodes – two for each channel – can be connected to the device. Pain relief is most efficient during stimulation, but the effect can last after the treatment. Additionally, the TENS treatment increases the blood circulation. You can use Direct TENS™ at any time for pain relief and muscle relaxation. Each therapy session should last 30 minutes minimum and can be continued for several hours.

  • Dual channel hand held device, easy to use and easy to carry
  • 13 Programs for flexibility and diverse treatments
  • 5 quick select keys to easily choose an indication related program
  • Large easy to read LCD display
  • An integrated therapy timer function

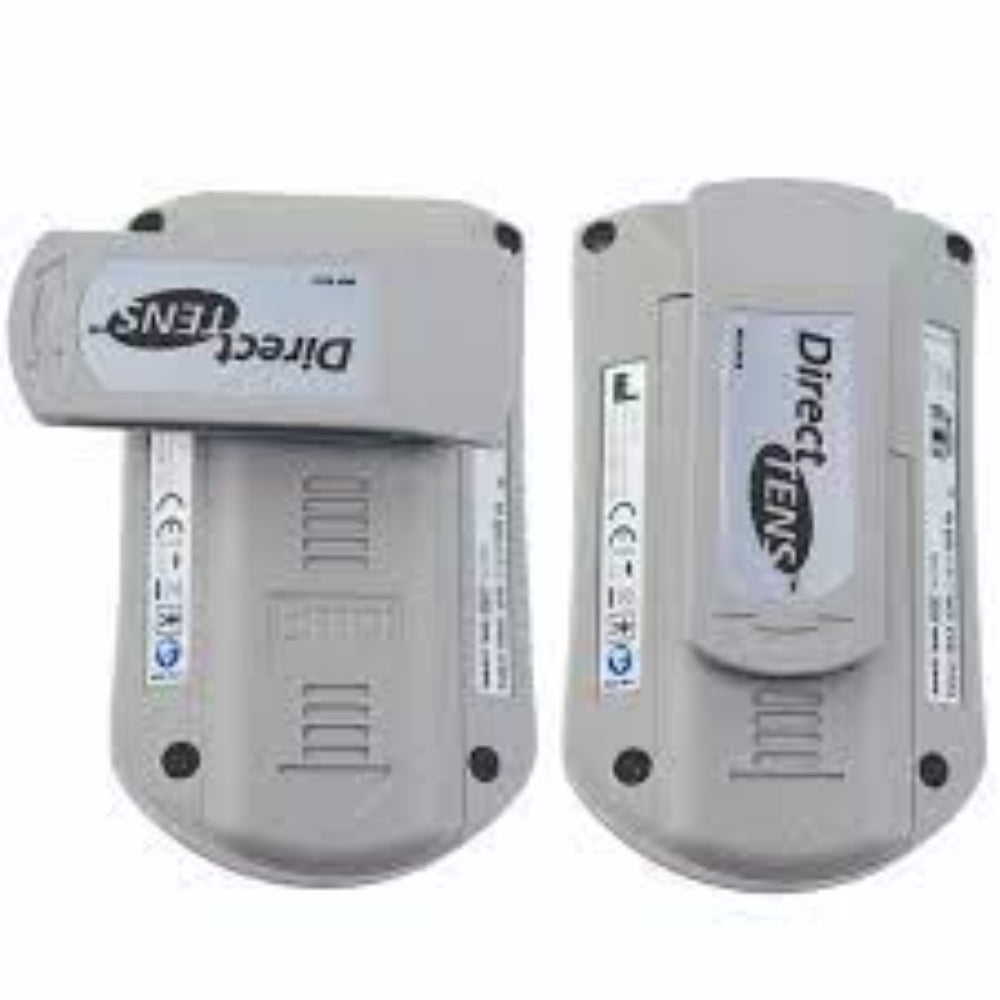

  • Detachable belt clip
  • An illustrated guide to suggested electrode placement for different treatments
  • A detailed user guide for guidelines and treatment recommendations
  • The keys automatically lock, preventing inadvertant changes to the treatment parameters
Direct TENS™ Applications
  • Joint pain (e.g. knee, hip arthrosis)
  • Chronic pain originating in the spine
  • Degenerative diseases of the musculoskeletal system
  • Tension headache
  • Radiating pain (e.g. back pain, cervicobrachial syndrome)
  • Amputation stump/phantom limb pain
  • Pain from rheumatic diseases
  • P1 ELF (Extremely Low Frequency) TENS - 0.5Hz
  • P2 Double Pulse - 20Hz
  • P3 High Frequency - 1000Hz
  • P4 Bi-Modual - Ch.1 = 100 HZ, Ch. 2 = 4 Hz
  • P5 Burst with Alternating Work and Rest - W. = 100Hz, R. = 0Hz
  • P6 Burst with Longer Work and Rest - W. = 100Hz, R. = 0Hz
  • P7 Decreasing Intensity - 100Hz
  • P8 Random Modulation - 2 - 150Hz
  • P9 Continuous - 2 - 150Hz
  • P10 Classic Burst - W. = 2 - 150Hz, R. = 0Hz<
  • P11 Mixed Frequency - Ph. 1 = 2 - 150Hz, Ph. 2 = 50% of work frequency
  • P12 Multi- Modulation - 2 - 150Hz
  • P13 Simple Modulated Pulse - 2 - 150Hz

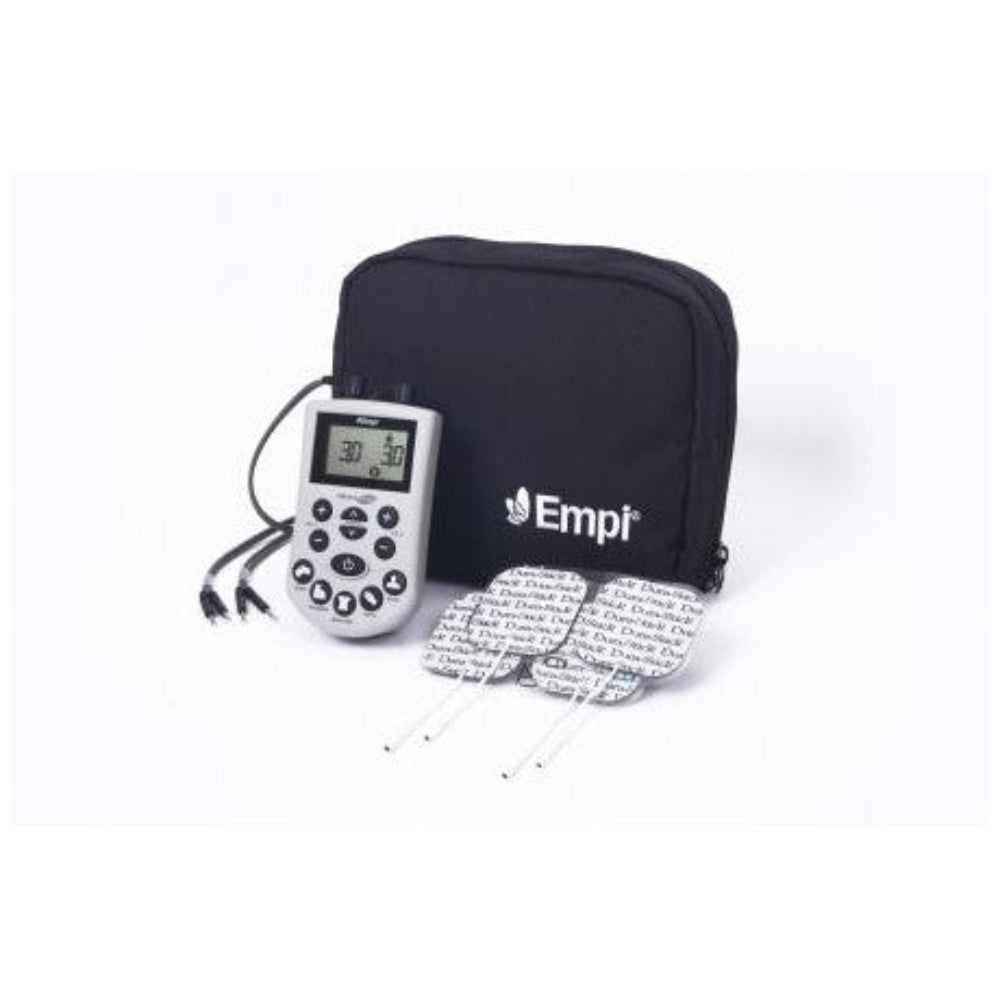

Standard Accessories
  • User Manual - 880043
  • Set of 2 Leadwires - 193068
  • 2 AA Alkaline Batteries - 1551
  • Dura-Stick 5x5 CM Square Electrodes (4 Electrodes Per Pack) - 42190
  • Small Empi Pouch - 66800637
Technical Specifications
  • Waveform: Asymmetrical Biphasic 100% Compensated
  • Number of Channels: 2
  • Number of Programs: 13
  • Constant Voltage: Up to a resistance of 1000 ohms
  • Maximum Amplitude: 40mA @1000ohms, 250 μs
  • Output Intensity: 0-60, adjustable in 0.5 steps
  • Max Pulse Duration/width: Up to 250 μseconds
  • Max Frequency: 1,000 Hz
  • Power Source: 2 x 1.5V AA Batteries or 2x 1.2V AA rechargeable batteries
  • Dimensions*: 110 x 70 x 30 mm
  • Weight: 165 g (Including batteries)
  • Electrical Safety Class: Class IIa, Type BF
  • Safety Test: EC 60601-1, IEC 60601-1-2

The Empi Direct TENS bears the CE marking CE-0473 (Notified Body: AMTAC Certification Services Limited) showing that it complies with the Council Directive 93/42/EEC as amended concerning medical devices and fulfils the essential requirements of Annex I of this directive. It has an internal power source and is classified as IIa equipment (MDD).

The Empi Direct TENS fulfils the requirements of the standard EN 60601-1 “Medical electrical equipment, Part 1: General requirements for safety” as well as the immunity requirements of the standard EN 60601-1-2 “Electromagnetic compatibility - medical electrical equipment
