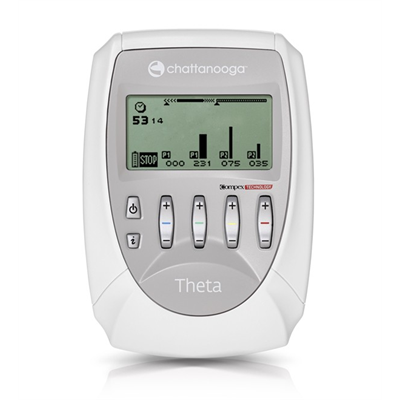

Chattanooga Theta TENS-NMES

• Constant Current: Up to a resistance of Max 1300 Ohm/channel
• Maximum Pulse intensity: 120 mA
• Pulse intensity increments: 0.25mA
• Pulse width: 30 to 400 µs
• Pulse Frequency: 1 to 150 Hz

The Chattanooga Theta Combo Stimulator is a 4 channel TENS & NMES unit that is Mi-ready.
The THETA provides 63 programs in the following categories. Download the Specifications sheet under Related Files tab for details on these programs.

The Theta is Mi-Ready (integrated Mi Technology on all 4 channels, Includes 2 Mi cables).

MUSCLE INTELLIGENCE™ TECHNOLOGY
The device is Mi-Ready allowing the user to upgrade the device by buying the Mi-Sensor at a later date. When the Mi (Muscle Intelligence) function is used with the Mi-Sensor, the stimulator automatically scans and adjusts to the user's physiology. The Mi-sensor detects reactivity thresholds of the user's muscles and adjusts the stimulation parameters to suit. This causes a decisive increase in training efficiency and effectiveness.

4 Mi functions available on all 4 channels:
• Mi-Scan – customize the stimulation according to the physiology for more comfort and efficiency
• Mi-Tens – work efficiently just behind the threshold for TENS program
• Mi-Range – work efficiently in the range of intensity required for low frequency programs
• Mi-Action – Active session with a voluntary contraction detected by the device to start the stimulation

OTHER KEY FEATURES OF THETA:

2+2 FEATURE
Choose one program for channel 1 and 2, and then select another program from the 2+2 program list for channel 3 and 4. This allows treatment of two different body parts, or two patients simultaneously, or combine NMES and TENS as one treatment.

SKIP
the Skip feature allows you to manage each session time more effectively by allowing you to end the current program phase (recovery) and move on to the next phase when needed.

I-BUTTON
Allows you to adjust the current on all four channels at the same time. You can access the top 5 favourite programs or check ongoing statistics (number of contractions, intensity level) during sessions.

TRIGGER FUNCTION
Start working phase voluntary when requested in protocols (Hemiplegic foot, spasticity, etc.)

MOTOR POINT PEN
Allow you to place your electrodes correctly and hence improve the simulation comfort and effectiveness. Easily adapts to snap or wire cables.

PROGRAMMABILITY
The Theta allows you to create and personalize programs in order to customize the treatment each time.

WAVE FORM
Symmetrical biphasic 100% compensated

INCLUDES:
Theta device
1 Fast charger
1 Battery pack
1 Set of 4 pin cables
1 Snap adaptor kit
2 Mi cables
1 Protective cover
2 Bags of small electrodes (5 cm X 5 cm 1 snap connection)
2 Bags of large electrodes (5 cm X 10 cm 2 snap connections)
1 User manual and practical guide on CD/USB 13-8870
1 Quick start guide + warning leaflet
1 Electrode placement leaflet
1 Bottle of gel
1 Motor point pen
1 Transportation pouch
1 Belt clip

WARRANTY
3 years from the date of purchase.

For detailed specifications, click on the "Related Files" tab.
