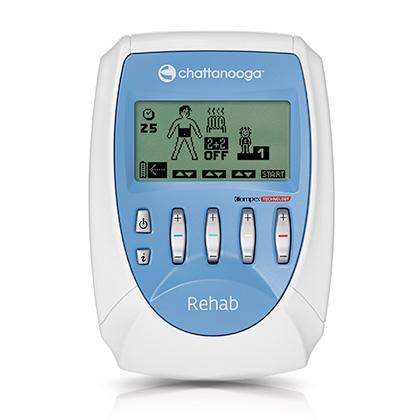

Chattanooga Rehab TENS-NMES

4 channel stimulator developed for Physiotherapists and Rehab Clinics that require a standard wireless option of electro-stimulation.

Meets all off the requirements a professional demands; pain management, treatment of vascular diseases, and muscle stimulation with basic programs.

Muscle Intelligence™ Technology

• Mi-Ready (integrated MI Technology on all 4 channels, but Mi-Cable not included)
• 4 functions: Mi-Scan, Mi-Tens, Mi-Range, Mi-Action

2+2

• Choose on program for channel 1 and 2 and then select another program from the 2+2 program list for channel 3 and 4. This allows treatment of two different body parts, or two patients simultaneously, or combines NMES and TENS as one treatment.

Skip

• Manage the session time and move directly to the next phase (recovery) when needed.

Motor Point Pen

• This very useful tool in combination on with dedicated program helps to ensure the optimal electrode placement.

Programmablility

• Creates and personalizes programs in order to customize the patient specific parameters.

Autonomy and Speed Recharge

• Daily use autonomy with the charger included in the kit, a full cycle of recharging will take a maximum of 2.5 hours

Technical Specification

• Constant Current: Up to resistance of Max 1300 Ohm/channel
• Max Pulse Intensity: 120 mA
• Pulse intensity increments: 0.25 mA
• Pulse width: 30 to 400 µs
• Pulse Frequency: 1 to 150 Hz

Programs to choose from

• Pain Relief I
  • Tens 100Hz Gate Control
  • Freq Modulated Tens
  • Pulse width Mod Tens
  • Endorphinic
  • Decontraction
  • Burst
  • Burst Tens alternated
• Rehabilitation I
  • Disuse atrophy
  • Reinforcement
  • Rev. of Disuse atrophy
  • Muscle Lesion
  • Motor Point
• Vascuolar
  • Capillarisation
  • Heavy Legs
  • Venous insufficiency 1
  • Venous insufficiency 2
  • Arterial insufficency 1
  • Arterial Insufficient 2
  • Cramp prevention
• Conditioning I
  • Resistance
  • Strength
  • Active Recovery
• Custom Programs
• NMES
  • Cont conventional
  • Cont modulated PW
  • Cont modulated freq
  • Burst
  • Intermitt conventional
  • Intermitt mod freq
• TENS
  • Conventional
  • Burst
  • Burst TENS alternated
  • Modulated PW
  • Modulated Frequency
