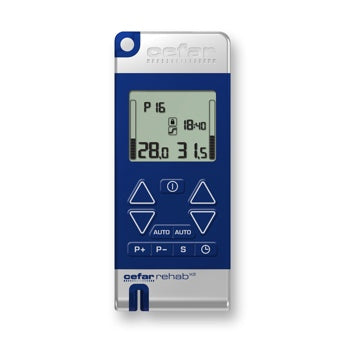

Cefar Rehab X2 (TENS & EMS) item # 2942

Cefar Rehab X2
3 years warranty

The Cefar Rehab X2 lets you rehabilitate all the muscles in your body, with programs that strengthen weakened muscles after an operation, fracture, etc.
The Cefar Rehab X2 is also an excellent tool for stroke rehabilitation, allowing patients to train things like handgrip and gait.


The Cefar Rehab X2 is primarily a muscle stimulator intended for rehabilitation, but it also contains pain-relief programs.

The Cefar Rehab X2 has two channels, so you can treat two places at once. The channels use the same stimulation program.

The Cefar Rehab X2 features the new program Cefar Flow TENS, a preset program with a new comfortable stimulation.

The Cefar Rehab X2 runs on regular 1.5 V AA batteries, which you can buy in any store. You can also use rechargeable batteries.

Features
. TENS: Cefar Flow TENS, mixed frequency (Han-stimulation), several pain relief programs
. NMES: Rehab programs for neurological and orthopaedic rehabilitation
. Alternating stimulation, strength programs with active rest, warm up, recovery and massage programs

Technology
. Cefar Easy TouchT: Automatic Intensity Adjustment - At the press of a button, the intensity is automatically set and adjusted according to the results of the Auto test analysis. Cefar Easy Touch makes treatment easier and ensures stimulation takes place at an optimal and
effective level
. Programmable: Cefar Rehab X2 allows the therapist to create and save three personal programs
. Cefar Flow Tens: A preset program featuring a comfortable stimulation method. Use both channels at the same time to combine pain relief with a pleasant massaging sensation. Other advantages: backlit screen, pause function, program lock, timer, key lock, self check and compliance
. Two year warranty

Advantages
. Cefar Clinical Guide (CCGT): Comprehensive information about the most common indications can be found in the user manual. Find guidelines and suggested programs with photos of electrode placements for the most common indications
. Hand Switch: The hand switch allows manual adjustment of the contraction time in intermittent stimulation programs, thereby ensuring effective and personalized treatment

TENS Programmes:
P1: Conventional, 80 Hz
P2: BURST, 2 Hz
P3: Modulated pulse width, 80 Hz
P4: Mixed frequency, Han- stimulation,
80 Hz/2 Hz
P5: CEFAR FLOW TENS
P6: Guide program 1 Hz, 50 μs

NMES Programmes:
P7: Warm up short, 5 min
P8: Warm up long, 15 min

Smaller muscles, work/rest
P9: 4s/4s
P11: 6s/8s
P13: 10s/10s
P15: 5s/15s
P17: 4s/6s Alternating
P19: 10s/10s Active Rest
P21-P23: Strength 5s/8s

Larger muscles, work/rest
P10: 4s/4s
P12: 6s/8s
P14: 10s/10s
P16: 5s/15s
P18: 4s/6s Alternating
P20: 10s/10s Active Rest

Sport programs
P21: 5s/8s Upper body
P22: 5s/8s Lower body
P23: 5s/8s Back/Trunk
P24,P25: Recovery
P26,P27: Massage
P28-P30: Custom Program


Standard Accessories
Set of Lead Wires (2pcs)
Cefar Rehab X2 User Manual
Cefar Bag (Black), 2ch
Cefar Neck Strap
Hand Switch
AA Batteries
1 Pack of Electrodes

Technical Specifications:
Number of Channels: 2
Number of Programs: 27 preset, 3 programmable
Constant Current: Up to a resistance of Max 1000 Ohm/channel
Maximum Amplitude: 99.5 mA
Intensity Increments: Minimum 0.5 mA
Max Pulse Duration/Width: 400 μ seconds
Frequency: 1-120 Hz
Power Source: 2x1.5V AA
Dimensions*: 120 x 30 x 50 mm
Weight: 180g, including 2 AA batteries
Electrical Safety Class: Class II, Type BF
Safety Tests: IEC 60601-1, IEC 60101-1-2
* Dimensions are listed as L x W x H
